General Information
- Model: CL2016GA/CL2025GA/CL2030GA/CL2033GA/CL2036GA
- Lifting capacity: 2,000kg
- Maximum lifting height: 4,000mm
This series delivers reliable power, smooth control, and stable performance for efficient material handling across a wide range of operating environments.
Engineered with a focus on durability, reliability, and safety, the forklift is built to handle demanding working conditions and continuous material handling operations. It is well suited for manufacturing facilities, warehouses, logistics centers, distribution centers, and other industrial applications where dependable performance is essential.
Main Specification
|
Model |
CL2016GA |
CL2025GA |
CL2030GA |
CL2033GA |
CL2036GA |
|
|
Rated Load Capacity |
Q(t) |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
|
Load Centre |
c (mm) |
600 |
600 |
600 |
600 |
600 |
|
Wheelbase |
y (mm) |
1332 |
1332 |
1332 |
1332 |
1332 |
|
Total Weight（with battery） |
kg |
960 |
1035 |
1090 |
1115 |
1135 |
|
Height of Mast（lowered） |
h1 (mm) |
1990 |
1741 |
1991 |
2141 |
2291 |
|
Overall length |
l1 (mm) |
2040 |
2040 |
2040 |
2040 |
2040 |
|
Overall Width |
b1/ b2 (mm) |
808 |
808 |
808 |
808 |
808 |
|
Min Turning Radius |
Wa (mm) |
1570 |
1570 |
1570 |
1570 |
1570 |
|
Travel Speed（Full Load / No Load） |
(km/h) |
5.2/5.5 |
5.2/5.5 |
5.2/5.5 |
5.2/5.5 |
5.2/5.5 |
|
Max.Gradeability（Full Load / No Load） |
(%) |
6/8 |
6/8 |
6/8 |
6/8 |
6/8 |
|

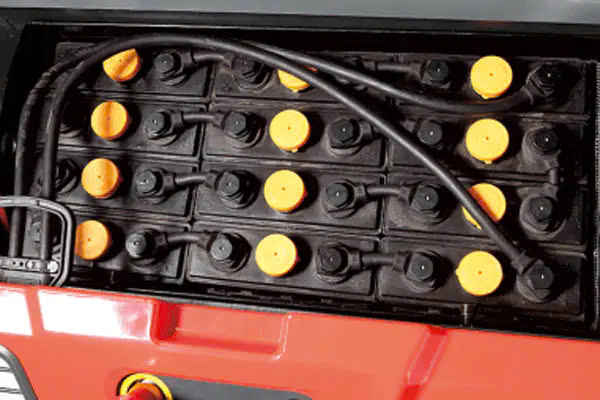

Battery |
(V/Ah) |
24/210 |
24/210 |
24/210 |
24/210 |
24/210 |
