General Information
- Model: FB20/FB25
- Lifting capacity: 2,000kg-2,500kg
- Maximum lifting height: 6,000mm

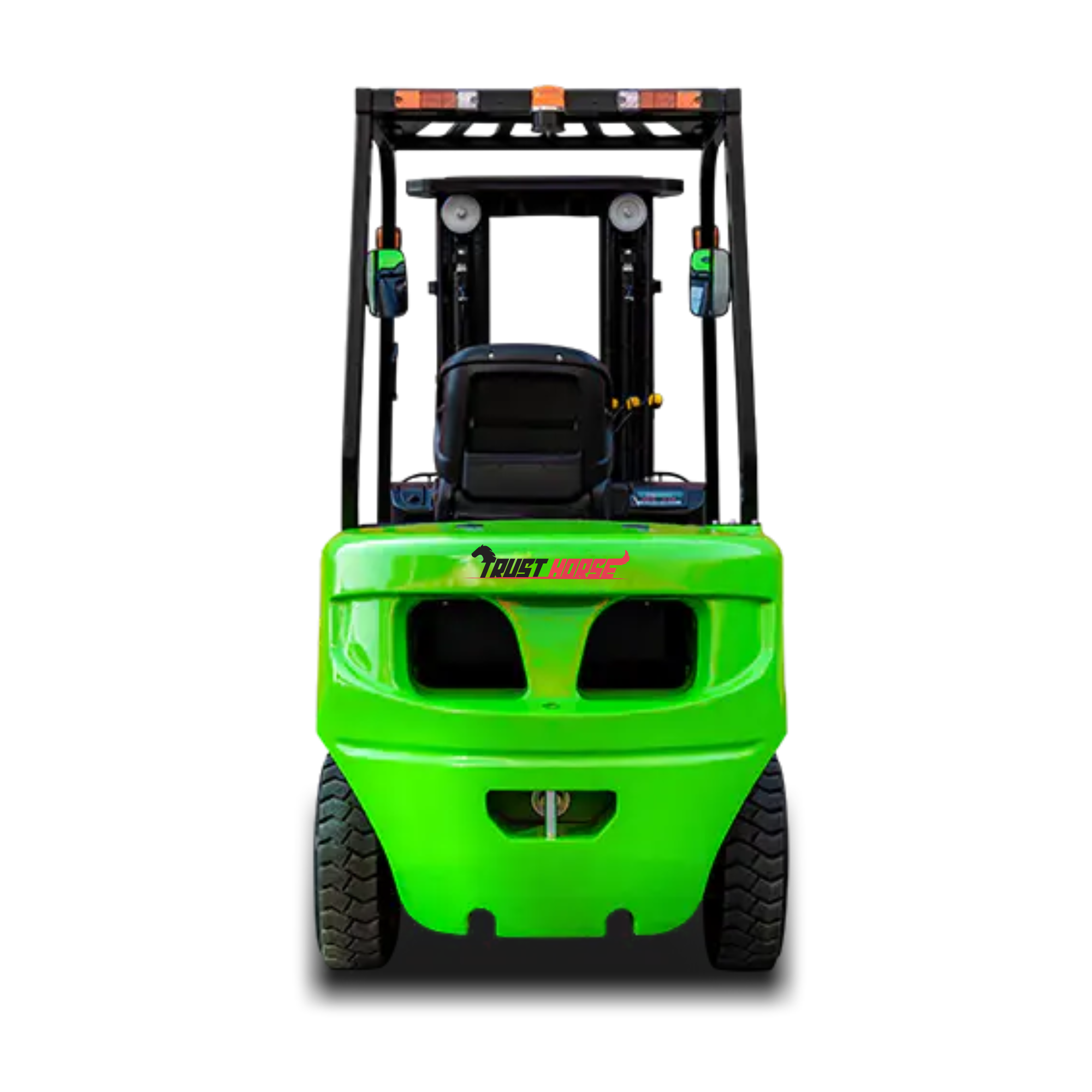

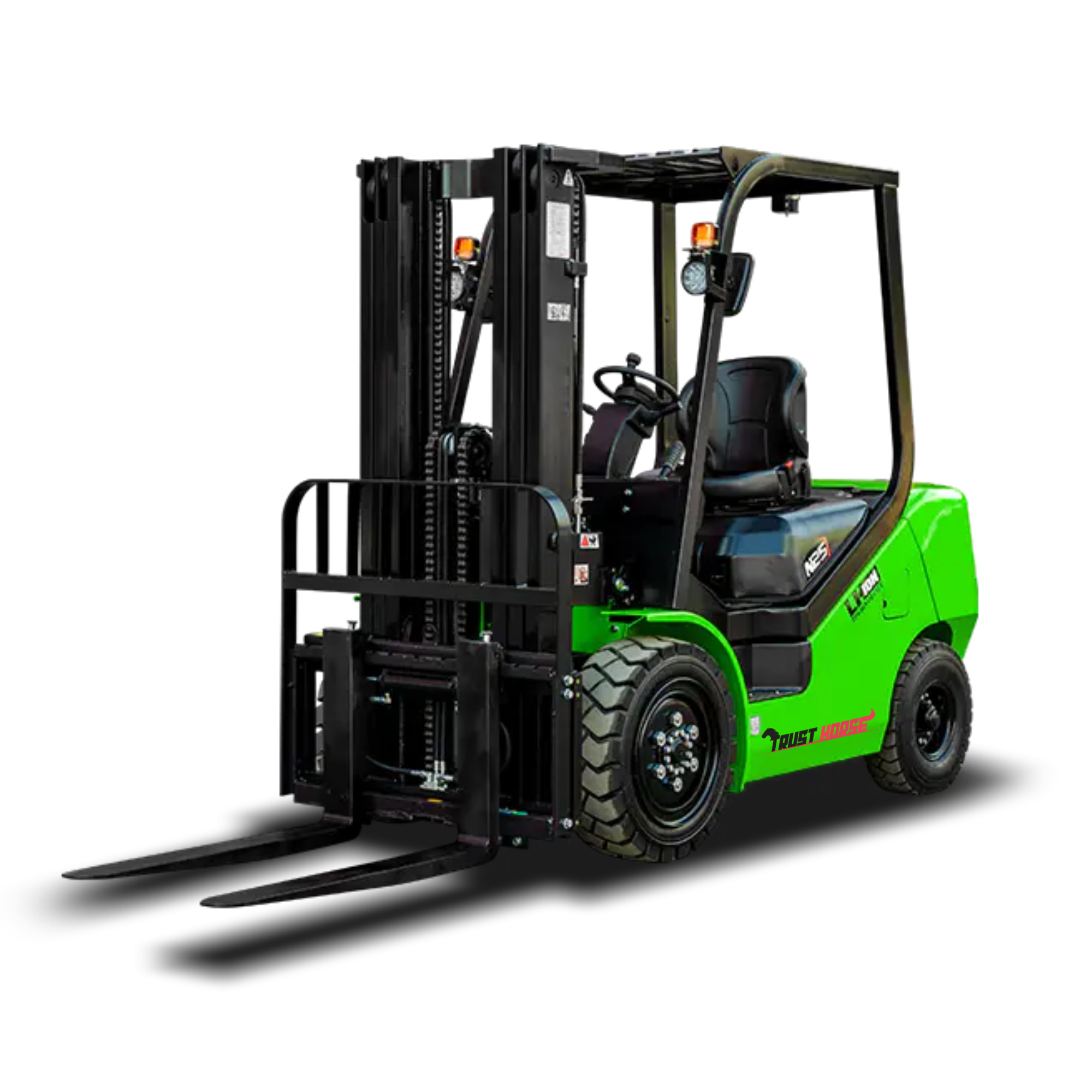

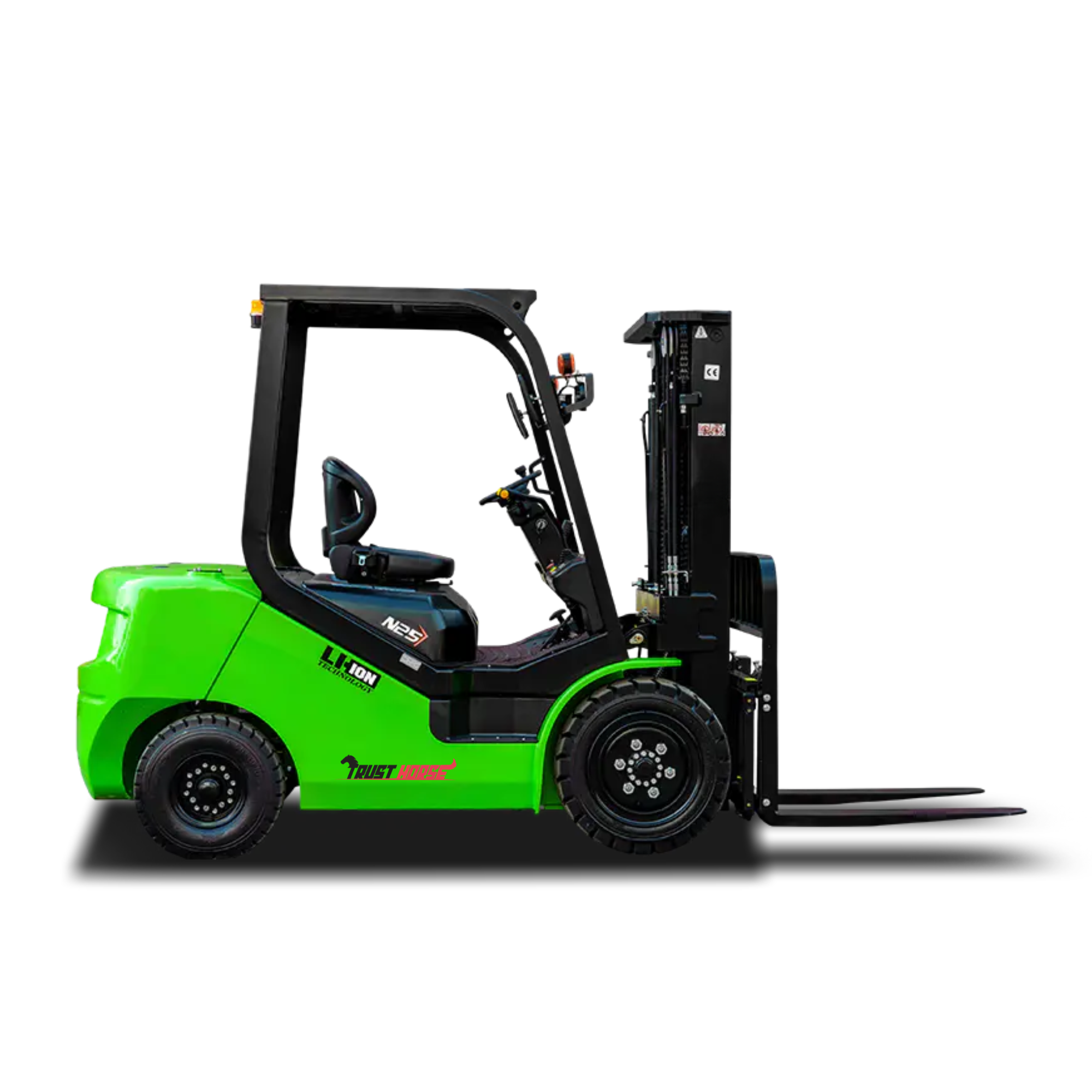

The Trust Horse NL Series 2.0–2.5 ton Lithium Battery Forklift is specifically engineered for light-duty material handling applications, delivering an efficient, eco-friendly, and cost-effective solution.
Powered by a high-efficiency lithium battery system, the NL Series features fast charging, zero emissions, quiet operation, and maintenance-free battery technology, helping maximize uptime while reducing operating costs. Its compact design and tight turning radius provide excellent maneuverability, making it ideal for narrow aisles and confined working environments.
Combining environmental sustainability, operational flexibility, and low total cost of ownership, the NL Series is an ideal alternative to traditional internal combustion forklifts for warehouses, logistics centers, manufacturing facilities, and distribution operations.
Main Specification
|
Model |
FB20 |
FB25 |
|
|
Rated Load Capacity |
Q(kg) |
2000 |
2500 |
|
Load Centre |
C(mm) |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2660 |
2660 |
|
Overall Width |
B1(mm) |
1150 |
1150 |
|
Overhead Guard Height |
H5(mm) |
2215 |
2215 |
|
Turning Radius (Outside) |
Wa(mm) |
2365 |
2365 |
|
Travel Speed (No Load) |
km/h |
11/12 |
11/12 |
|
Max.Gradeability (Full Load) |
% |
15 |
15 |
|
Wheelbase |
Y(mm) |
1650 |
1650 |
|
Total Weight |
kg |
3385 |
3605 |
|
Battery |
V/Ah |
80V/135AH |
80V/175AH |
