- Model: FG30T/ FG35T/ FL30T/ FL35T/ FGL30T/ FGL35T
- Lifting load: 3,000kg/ 3,500kg
- Maximum lifting height: 6,000mm

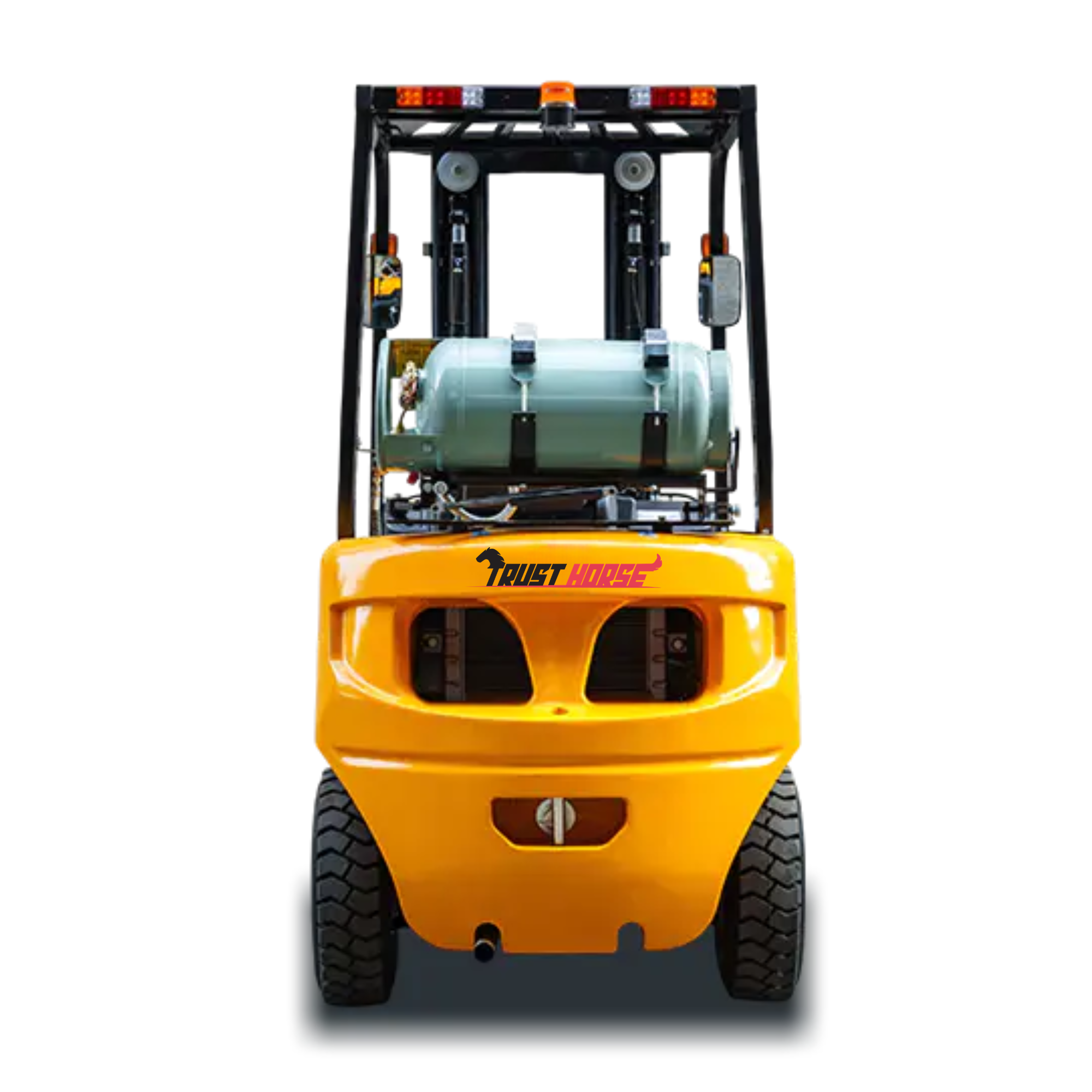

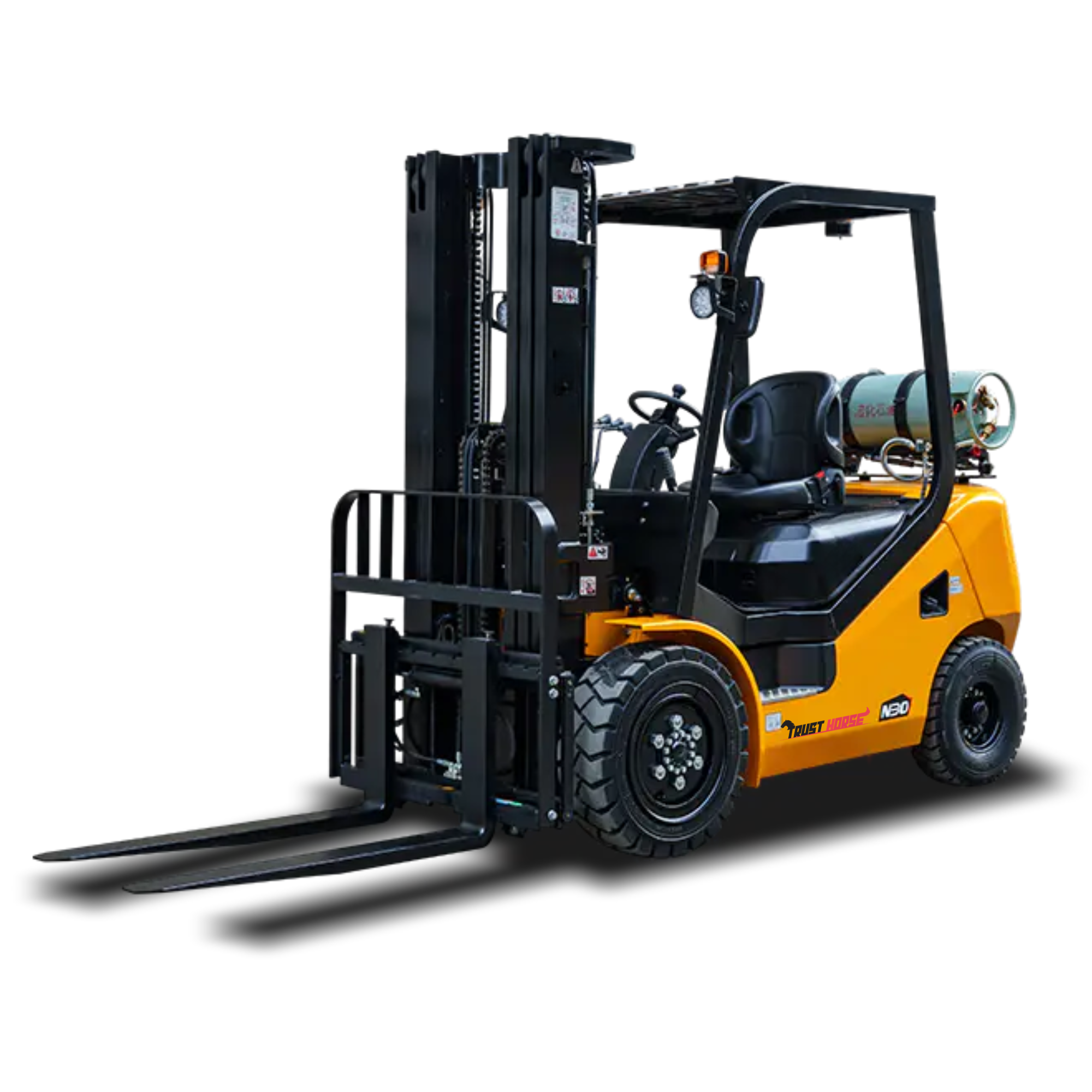

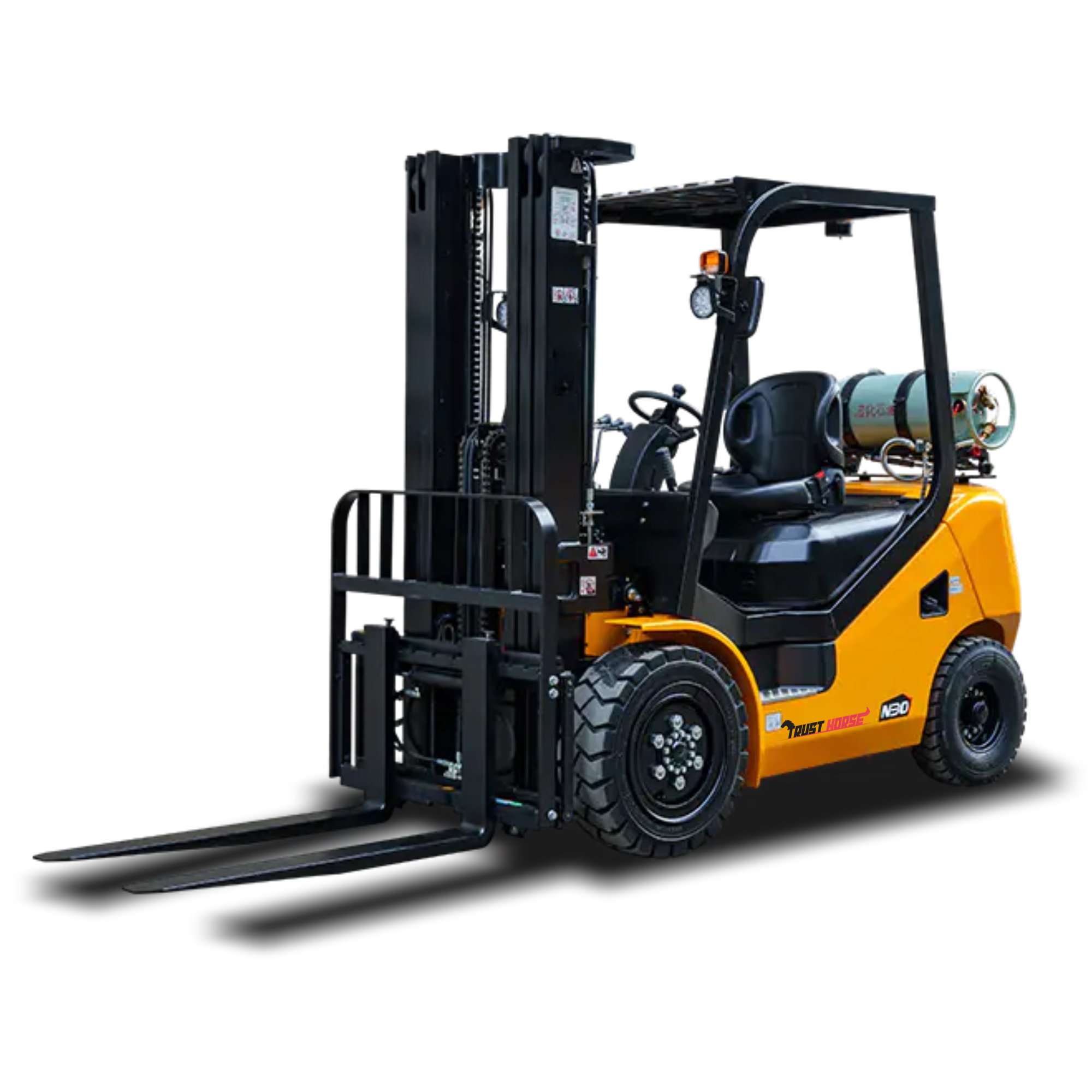

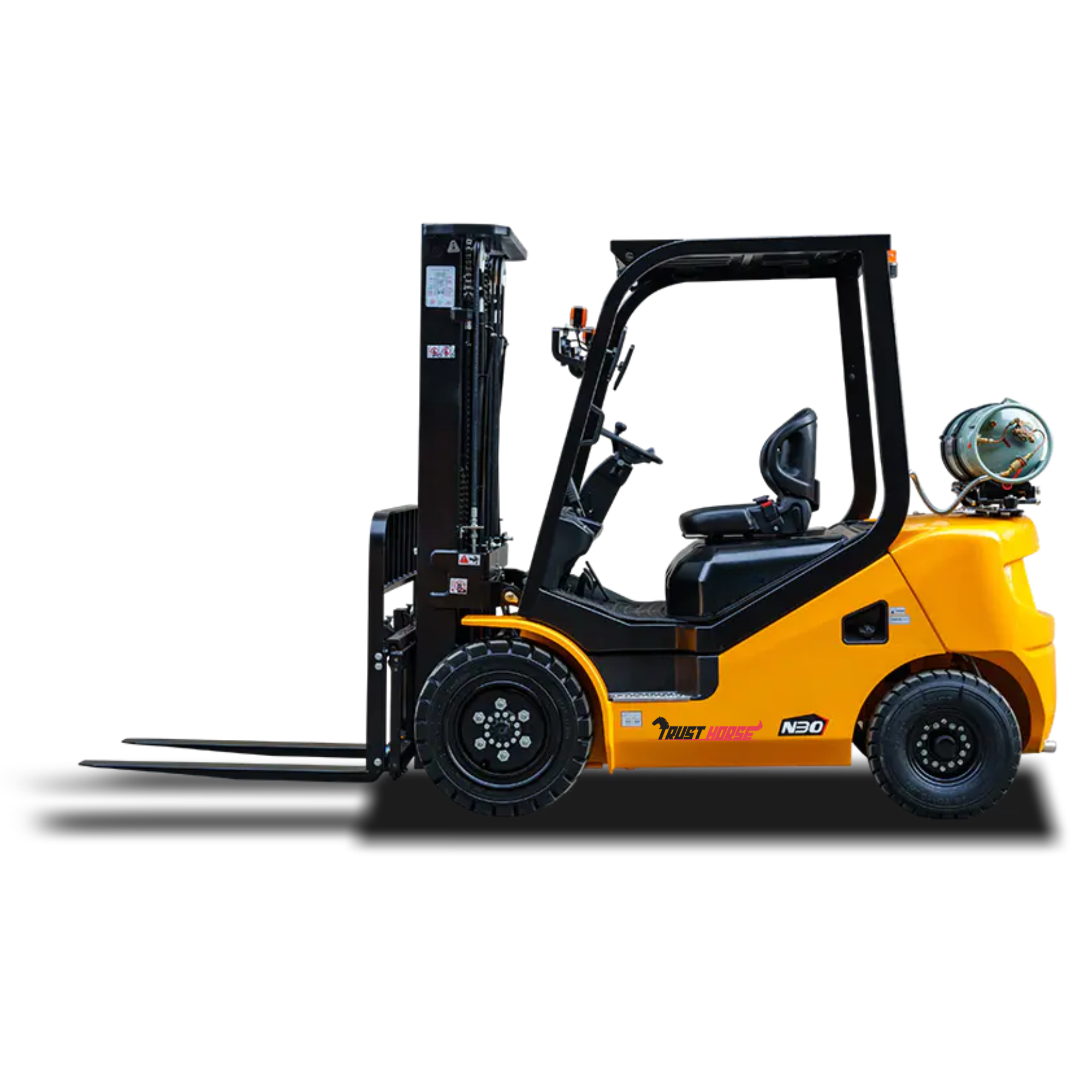

N Series 3.0–3.5 Ton LPG & Gasoline Forklift
The Trust Horse N Series 3.0–3.5 ton LPG & gasoline forklift is powered by a high-performance engine, making it ideal for frequent material handling tasks and medium-duty loading applications.
Delivering stable power output, low emissions, and smooth operation, it is well suited for both indoor and outdoor environments. Its compact design and responsive steering system provide excellent maneuverability in confined spaces while enhancing productivity and operational efficiency.
Designed for versatility and reliability, the N Series is an ideal solution for warehouses, logistics centers, manufacturing plants, distribution facilities, and a wide range of industrial material handling applications.
MAIN SPECIFICATIONS
|
Model |
FG30T |
FG35T |
FL30T |
FL35T |
FGL30T |
FGL35T |
|
|
Rated Load Capacity |
Q(kg) |
3000 |
3500 |
3000 |
3500 |
3000 |
3500 |
|
Load Centre |
C(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2695 |
2780 |
2695 |
2780 |
2695 |
2780 |
|
Overall Width |
B1(mm) |
1225 |
1225 |
1225 |
1225 |
1225 |
1225 |
|
Overhead Guard Height |
H5(mm) |
2235 |
2235 |
2235 |
2235 |
2235 |
2235 |
|
Turning Radius (Outside) |
Wa(mm) |
2425 |
2500 |
2425 |
2500 |
2425 |
2500 |
|
Travel Speed (No Load) |
km/h |
19 |
19 |
19 |
19 |
19 |
19 |
|
Max.Gradeability (Full Load) |
% |
20 |
18 |
20 |
18 |
20 |
18 |
|
Wheelbase |
Y(mm) |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
|
Total Weight |
kg |
4460 |
4775 |
4460 |
4775 |
4460 |
4775 |
|
Engine Model |
GK25 |
GK25 |
GK25 |
GK25 |
GK25 |
GK25 |
