General Information
- Model: FB20/ FB25
- Lifting capacity: 2,000 - 2,500kg
- Maximum lifting height: 6,000mm

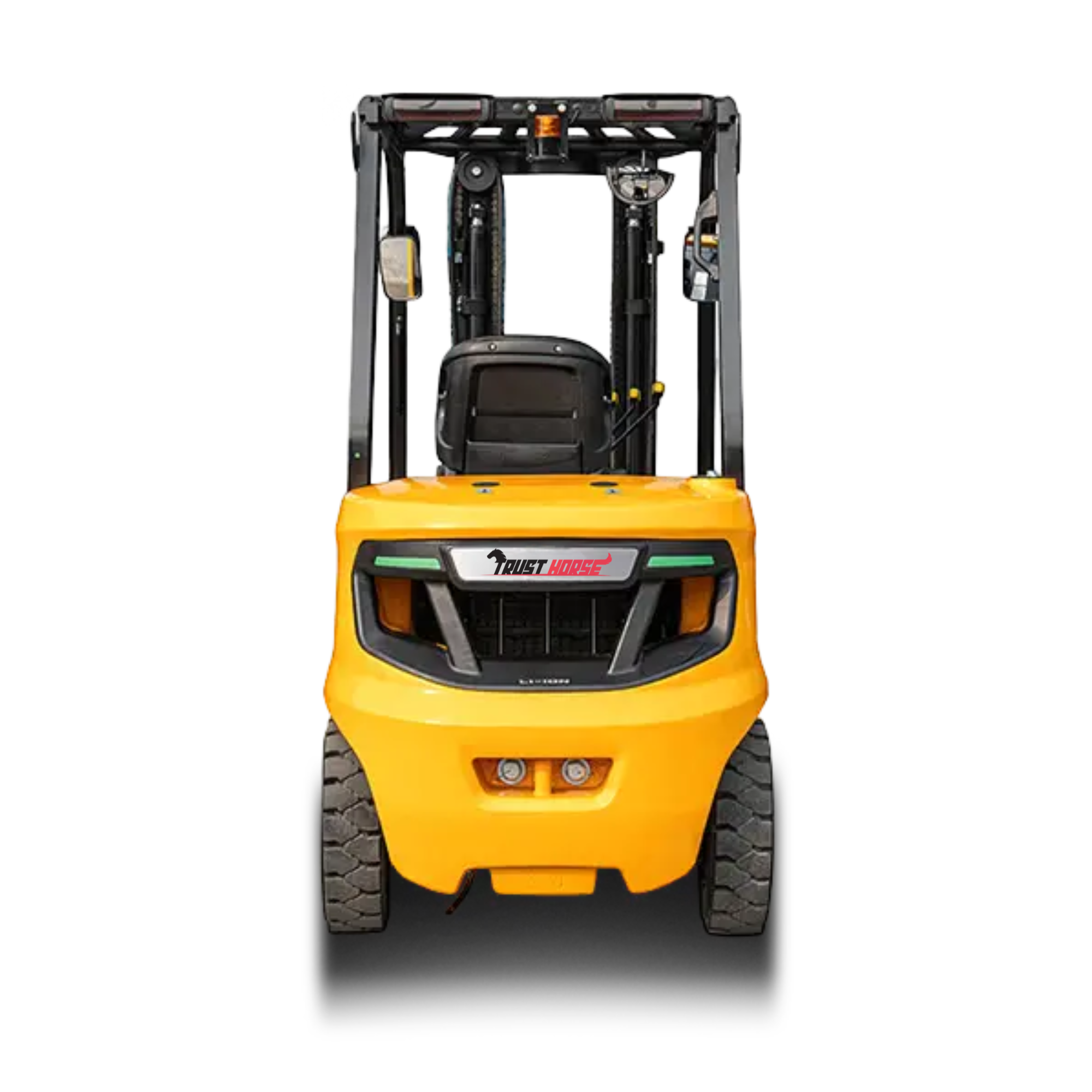

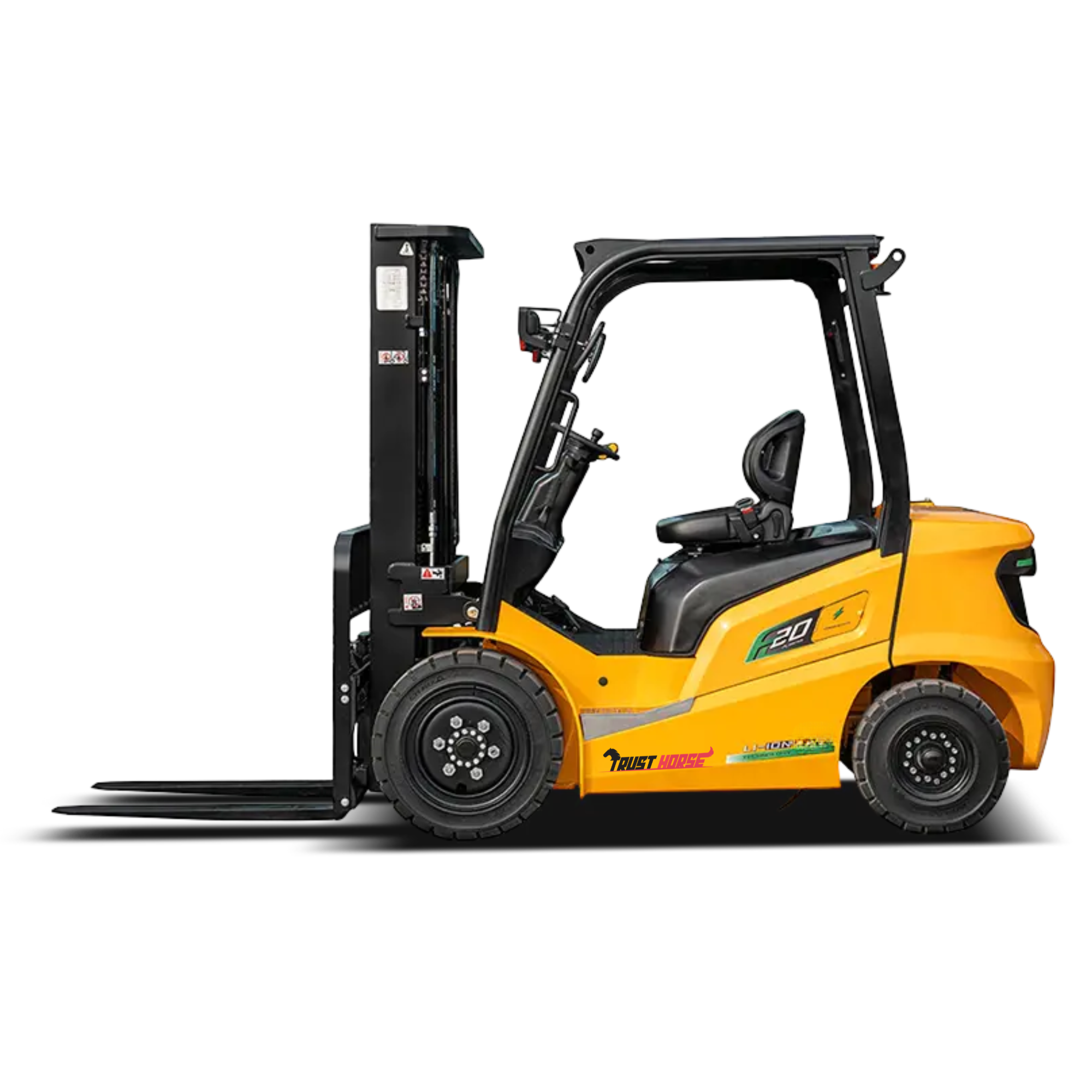

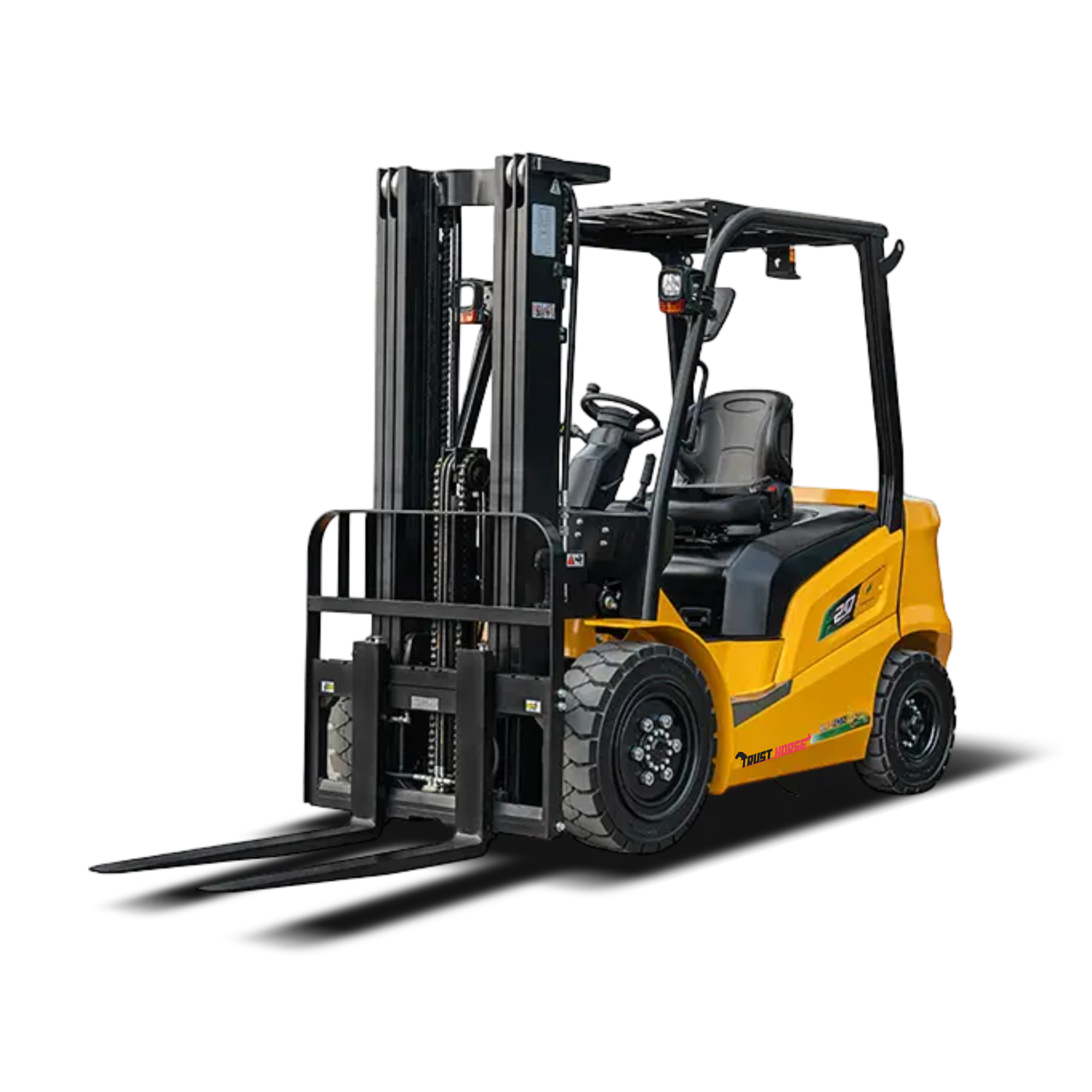

The Trust Horse FL Series Lithium Battery Counterbalance Forklift features a completely redesigned structure with a modern, robust, and streamlined appearance.
This new-generation design delivers significant improvements in both aesthetics and performance, while enhancing durability, operating efficiency, and operator comfort. Combined with advanced lithium battery technology, the FL Series offers fast charging, maintenance-free operation, and reliable performance, making it an ideal solution for warehouses, logistics centers, manufacturing facilities, and a wide range of industrial material handling applications.
Main Specification
|
Model |
FB20 |
FB25 |
|
|
Rated Load Capacity |
Q(kg) |
2000 |
2500 |
|
Load Centre |
C(mm) |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2662 |
2662 |
|
Overall Width |
B1(mm) |
1180 |
1180 |
|
Overhead Guard Height |
H5(mm) |
2215 |
2215 |
|
Turning Radius (Outside) |
Wa(mm) |
2365 |
2365 |
|
Travel Speed (No Load) |
km/h |
11/12 14/15 |
11/12 14/15 |
|
Max.Gradeability (Full Load) |
% |
15 |
15 |
|
Wheelbase |
Y(mm) |
1650 |
1650 |
|
Total Weight |
kg |
3472 |
3703 |
|
Battery |
V/Ah |
76.8V/175AH |
76.8V/175AH |
