General Information
- Model: FB50/FB70
- Lifting capacity: 5,000kg-7,000kg
- Maximum lifting height: 6,000mm

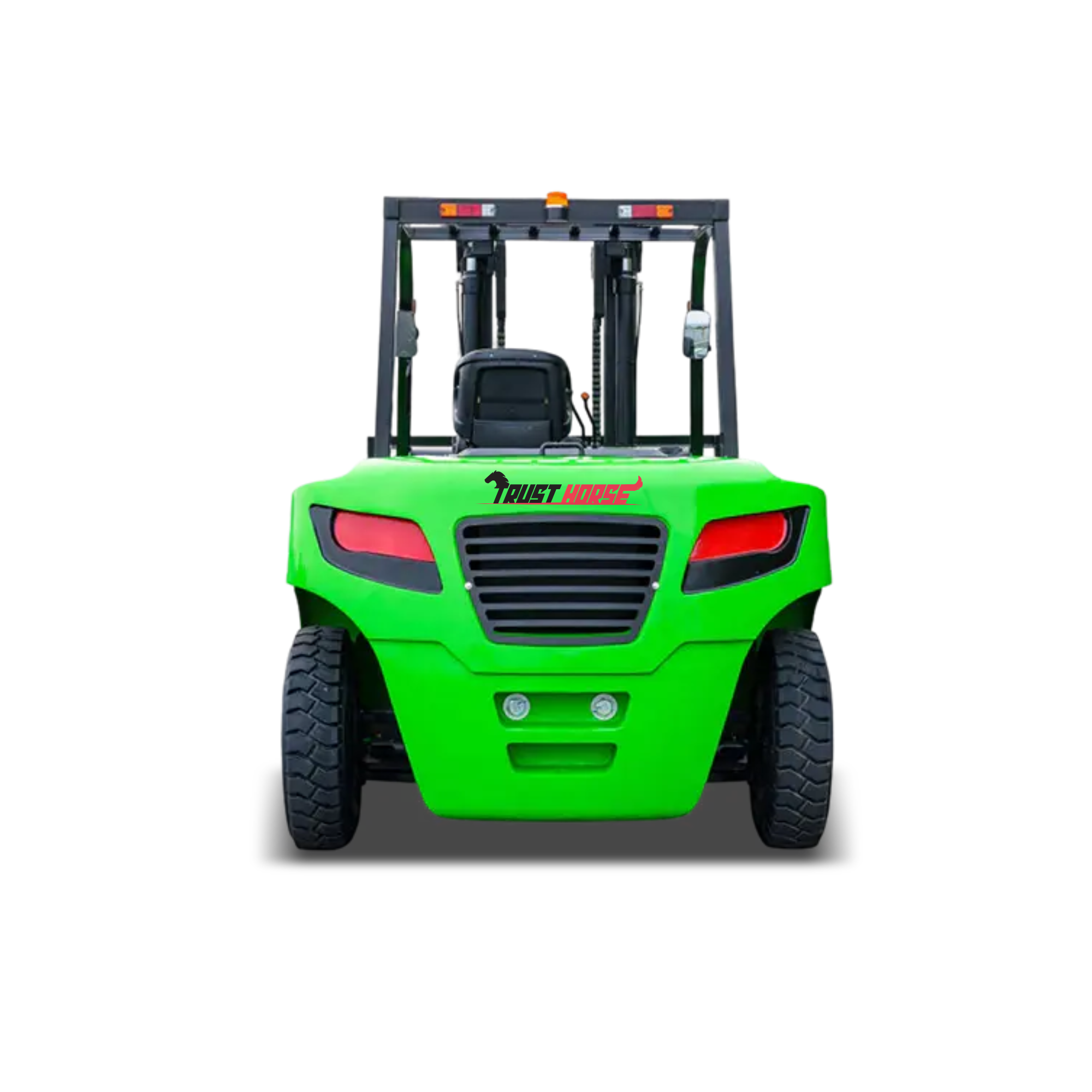

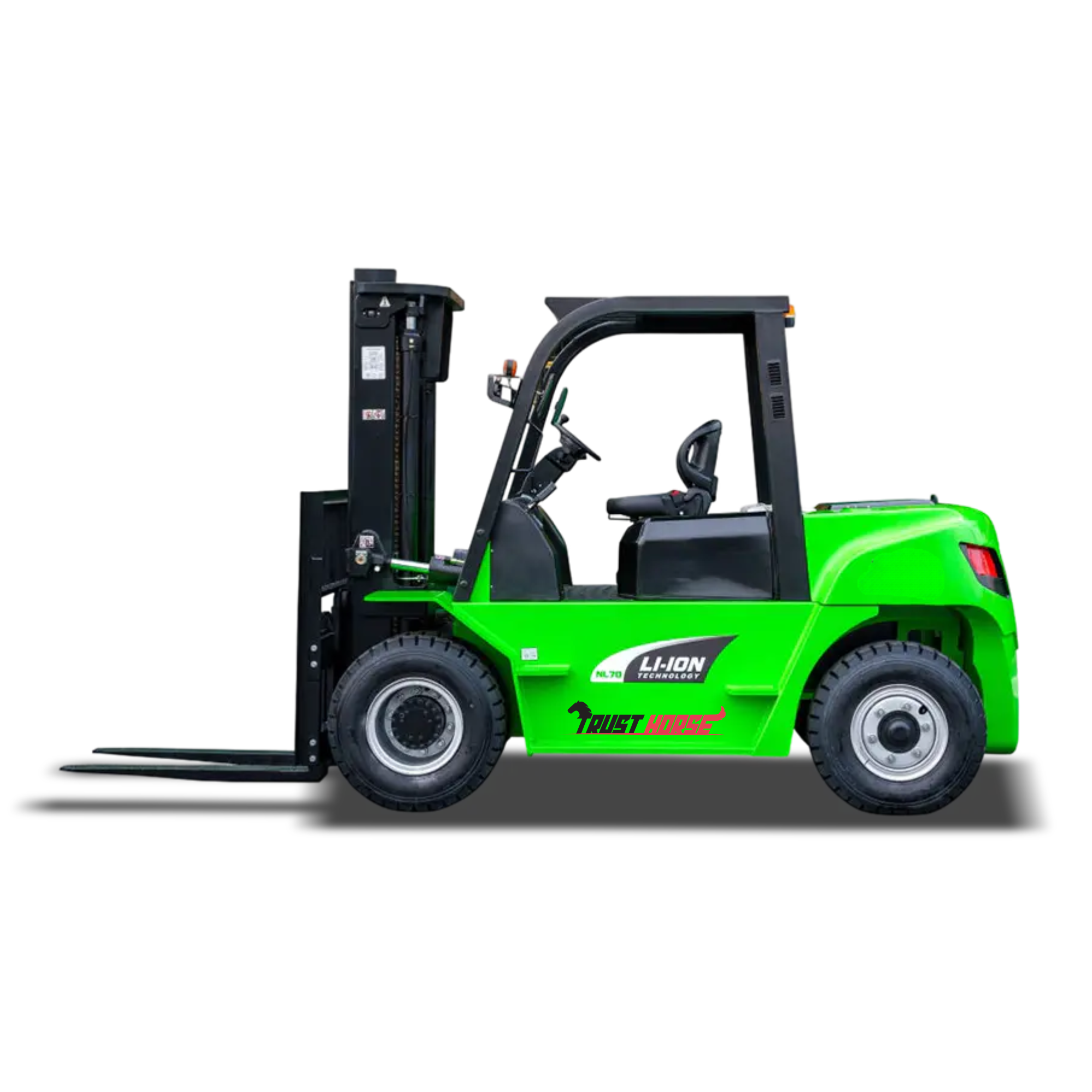

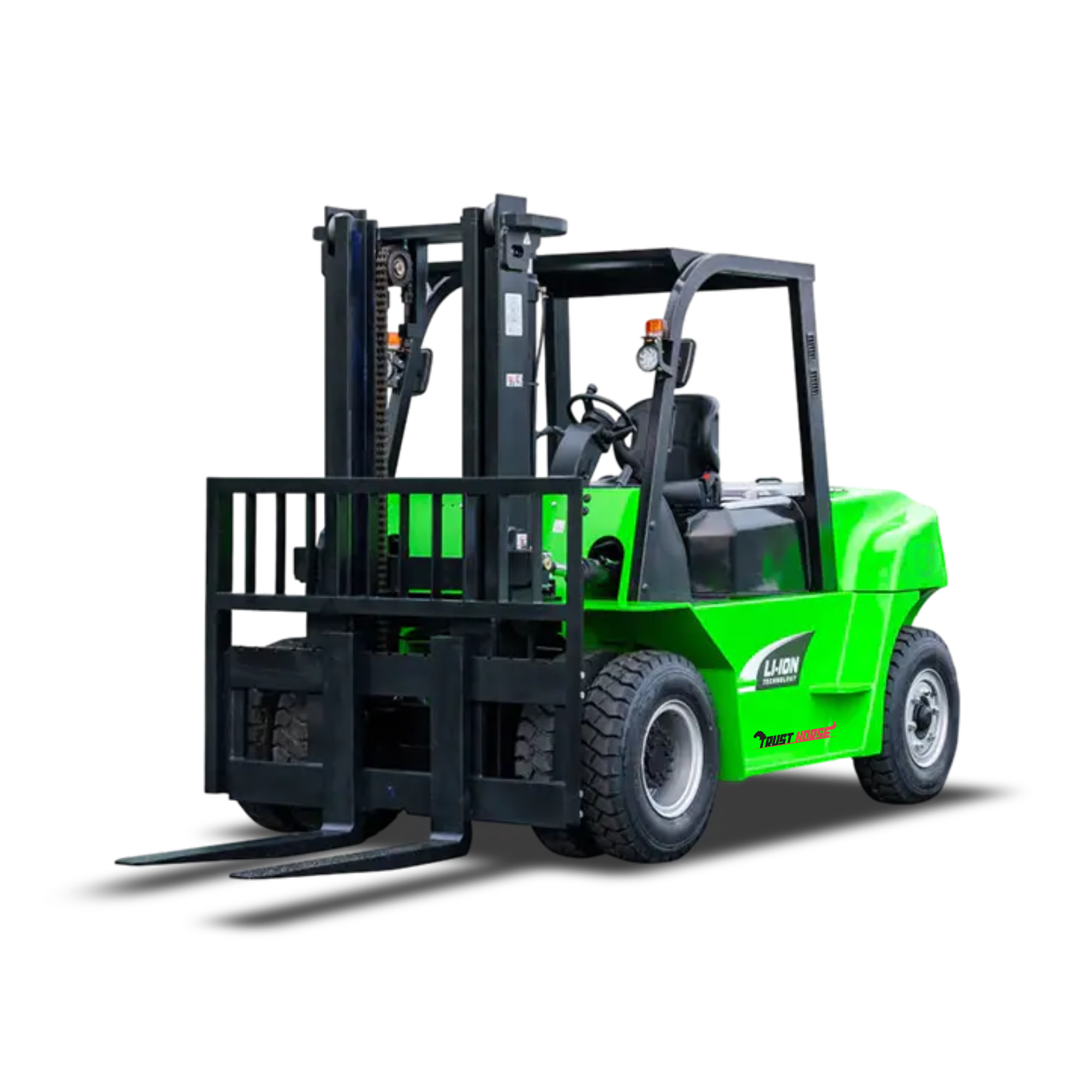

The Trust Horse NL Series 5.0–10.0 ton Lithium Battery Forklift is a high-performance electric material handling solution designed to replace traditional large-capacity internal combustion forklifts.
Powered by advanced lithium battery technology, it delivers powerful lifting performance, fast charging, zero emissions, and exceptional reliability. Built for demanding applications, the NL Series ensures stable and efficient operation under heavy-duty working conditions, making it ideal for ports, logistics centers, manufacturing facilities, warehouses, steel industries, building material operations, and other industrial environments.
Combining high productivity, environmental sustainability, and low operating costs, the NL Series 5.0–10.0 ton is the ideal choice for businesses seeking a reliable and efficient large-capacity forklift solution.
Main Specification
|
Model |
FB50 |
FB70 |
|
|
Rated Load Capacity |
Q(kg) |
5000 |
7000 |
|
Load Centre |
C(mm) |
600 |
600 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
3477 |
3547 |
|
Overall Width |
B1(mm) |
1995 |
1995 |
|
Overhead Guard Height |
H5(mm) |
2450 |
2450 |
|
Turning Radius (Outside) |
Wa(mm) |
3280 |
3360 |
|
Travel Speed (No Load) |
km/h |
14/15 |
12/13 |
|
Max.Gradeability (Full Load) |
% |
15 |
14 |
|
Wheelbase |
Y(mm) |
2250 |
2250 |
|
Total Weight |
kg |
8260 |
9760 |
|
Battery |
V/Ah |
76.8V/560AH |
76.8V/700AH |
